CDI Test Device/Mold Capacitor Deionization Device Seawater Demineralization and Desalination Equipment



CDI (capacitive deionization) test mold

      The principle of electro-adsorption technology is to form an electrostatic field between electrodes by applying voltage. Charged particles are forced to move to electrode plate with opposite charge by electrostatic force in the electrostatic field, forming an electric double layer on the surface of electrode plate, charged particles are adsorbed and temporarily stored in the electric double layer. When the adsorption process reaches equilibrium, after the electric field is removed or the power supply is connected in reverse, the ions adsorbed on the electrode return to the solution to achieve the purpose of desorption.

I. Product Introduction

1. Design type: the solution to be treated flows from the back of one electrode to the middle area of the two electrodes, and finally flows out from the back of the other electrode.



2. Product parameters

    4、Note:

   1）It is forbidden to place Plexiglass plate directly in ethanol/Alcohol solution, or pour alcohol on the surface of plexiglass plate, otherwise, plexiglass plate of the surface will be cracked or even damaged. Plexiglass plate when there is oil stain on the surface, it is recommendedDip with tissueA small amount of alcoholClean the surface.

   2）Do not use ultrasonic cleaning plexiglass plate!

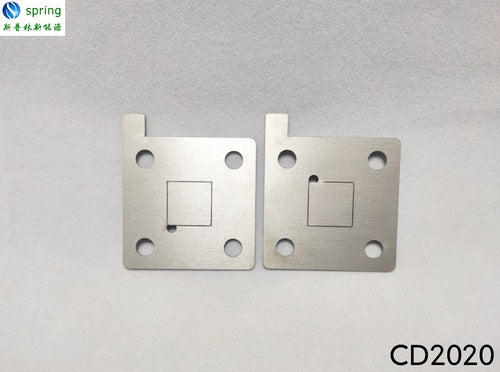

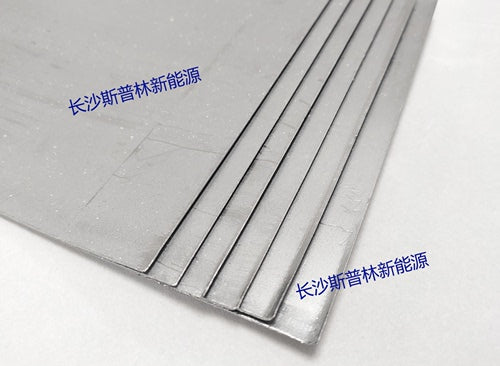

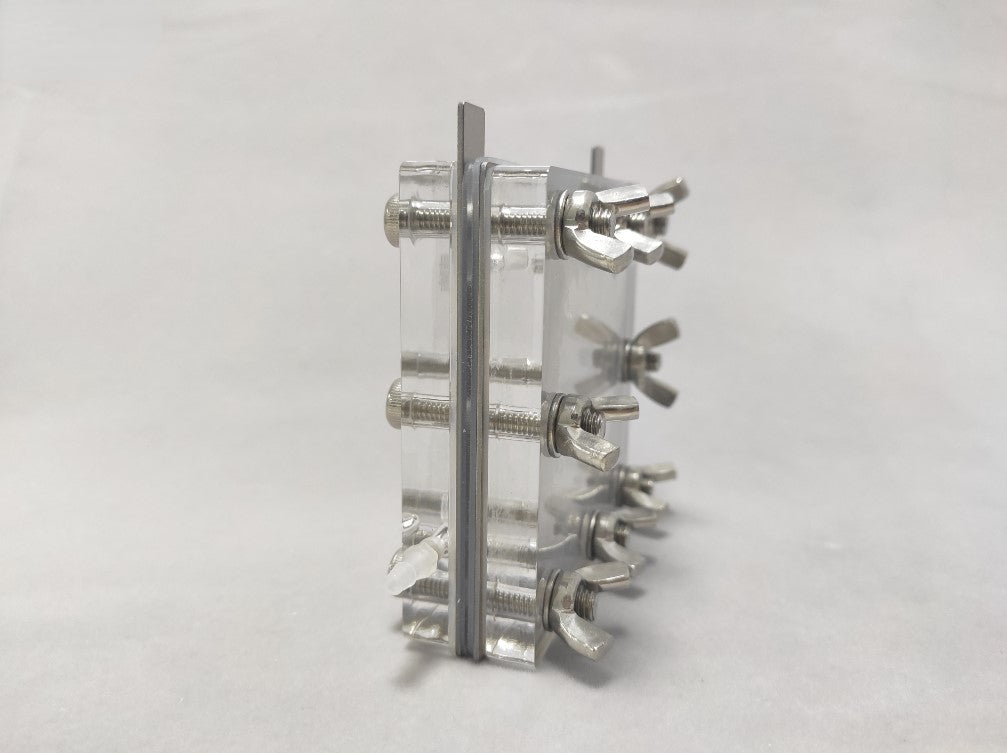

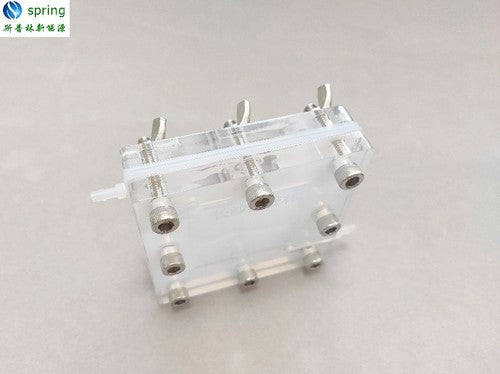

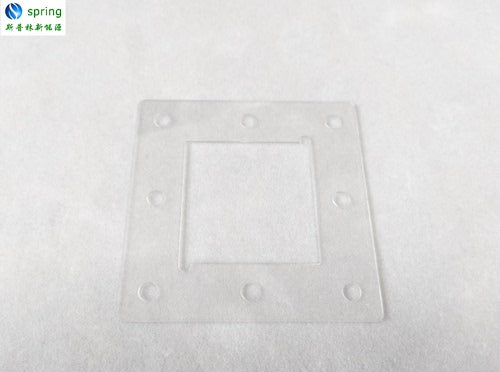

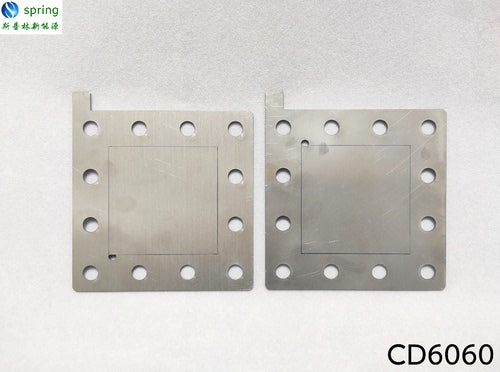

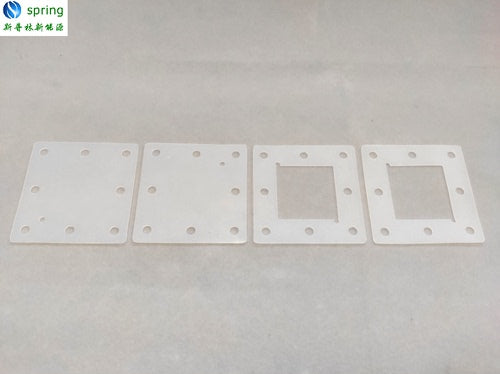

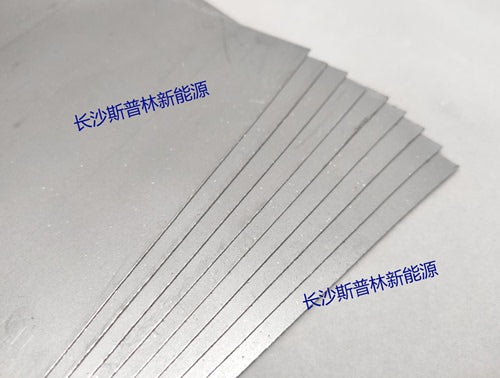

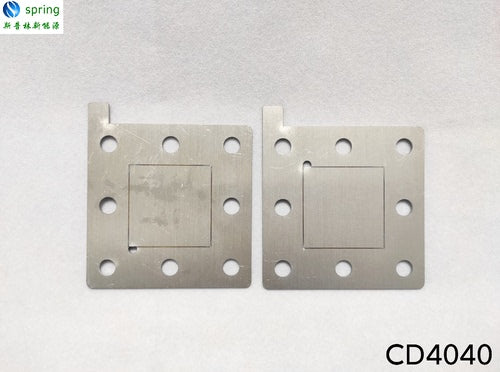

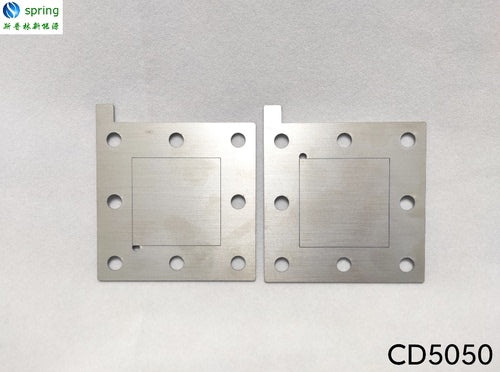

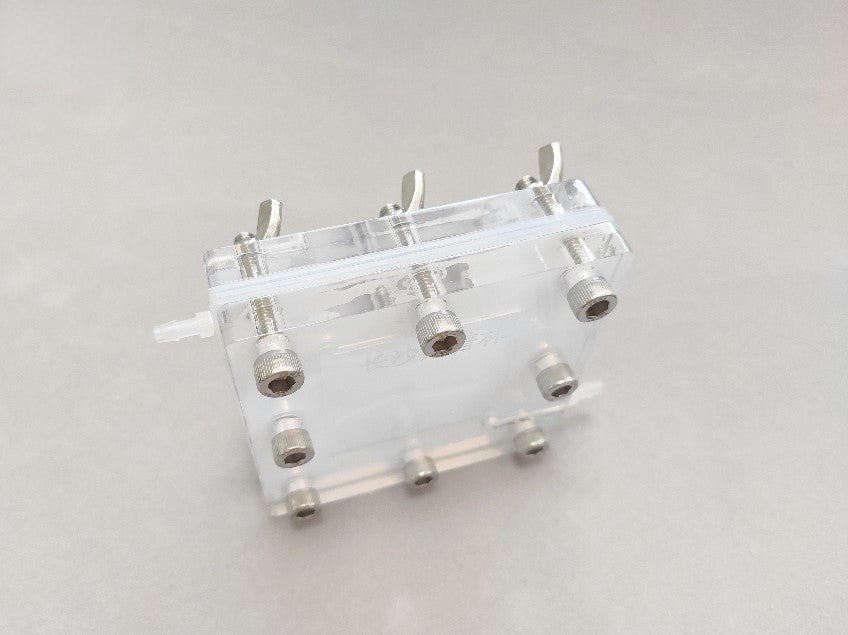

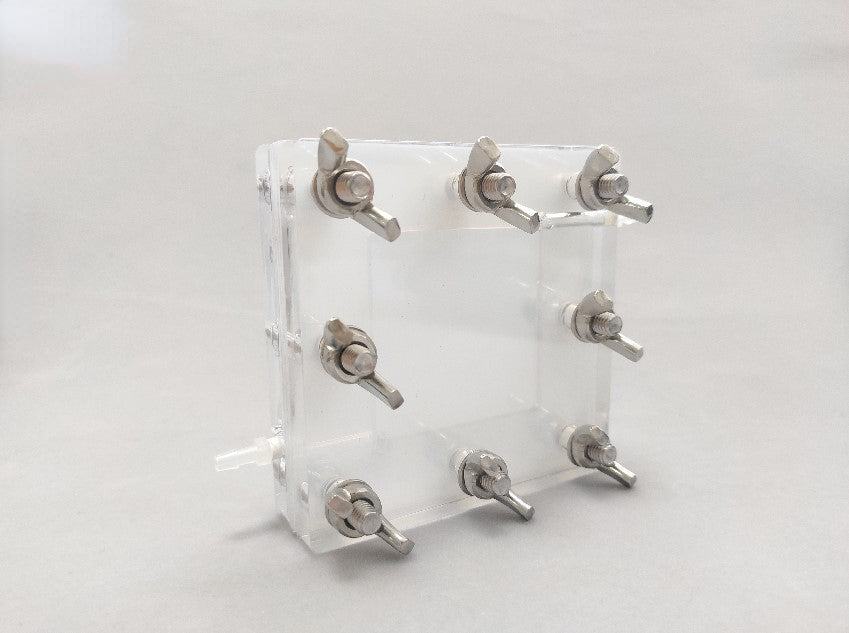

II. Product pictures

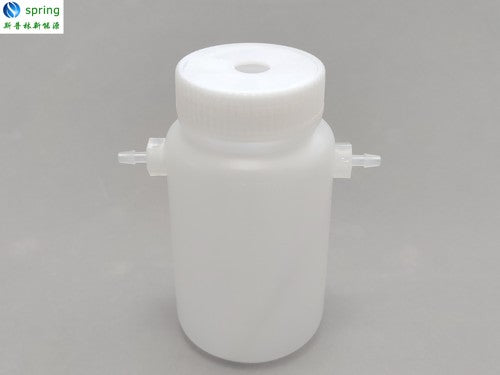

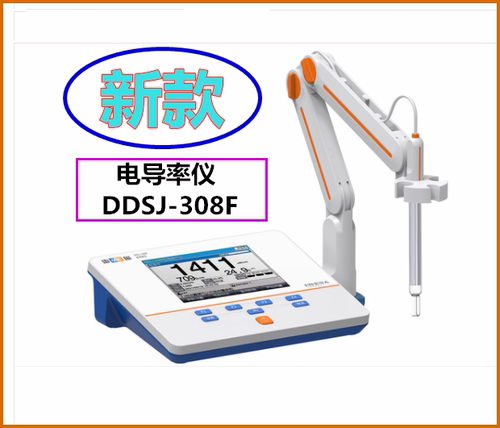

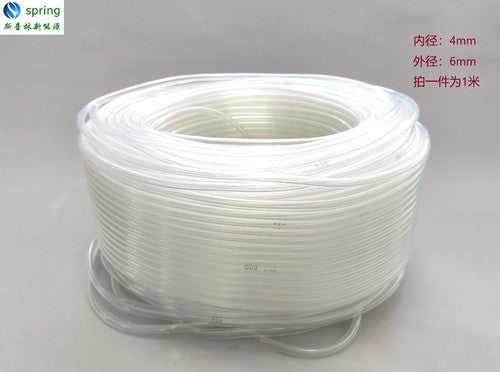

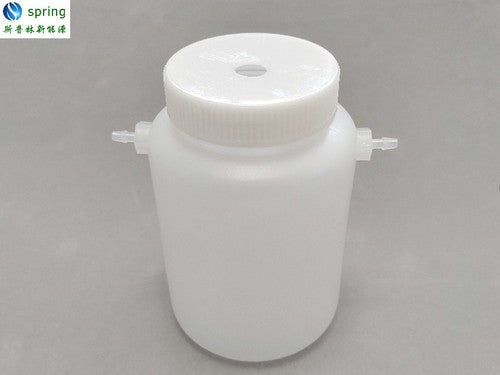

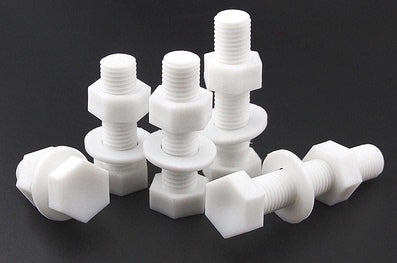

III. Accessories and instructions

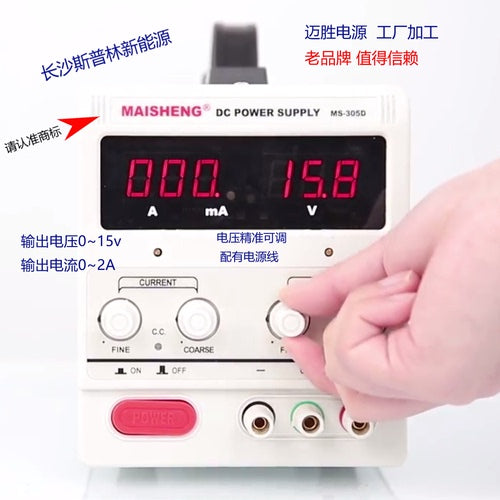

ACCESSORIES 1 circulating pump (3 ~ 10ml/min, flow rate manually adjustable)

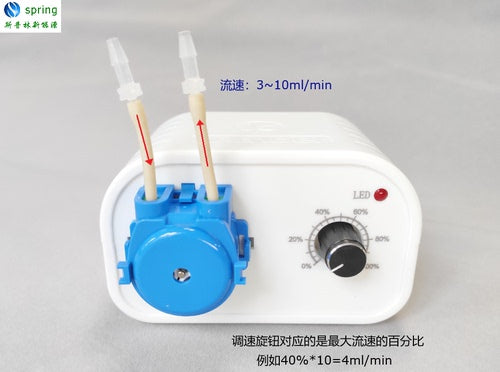

Accessories 2(3 ~ 10ml/min, the flow rate is manually adjustable)
