Fcdi Test Model Flow Electrode Electroadsorption Test Mold Seawater Purification Desalination Policher

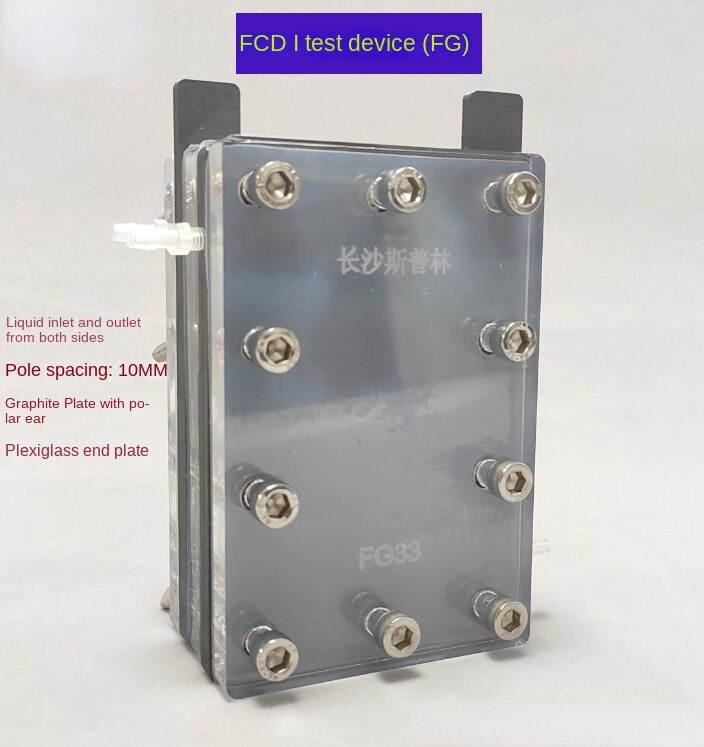

FCDI test mold:Flow electrode electroadsorption mold--FG series

I. Product Introduction

1. Flow electrode electric adsorption mold, according to the middle adsorption surface integral large, medium and small three models:

1)FG16 (reaction zone size 40 * 41mm) single flow channel width 2mm depth 2mm, contact area with Ionic screen protector 9.2 cm2;

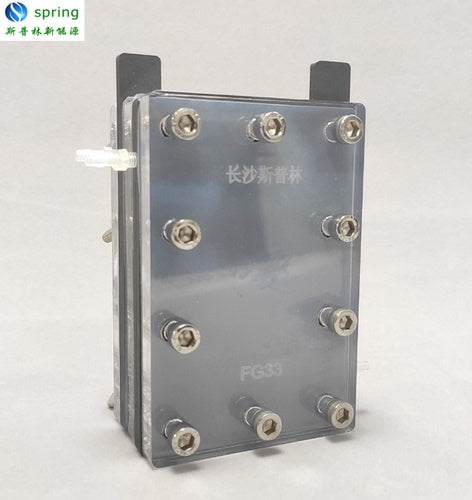

2)FG33 (reaction zone size 80 * 41mm) single flow channel width 2mm depth 2mm, contact area with Ionic screen protector 18 cm2;

3)FG45 (reaction zone size 110 * 41mm) single flow channel width 2mm depth 2mm, contact area with Ionic screen protector 24.6 cm2.

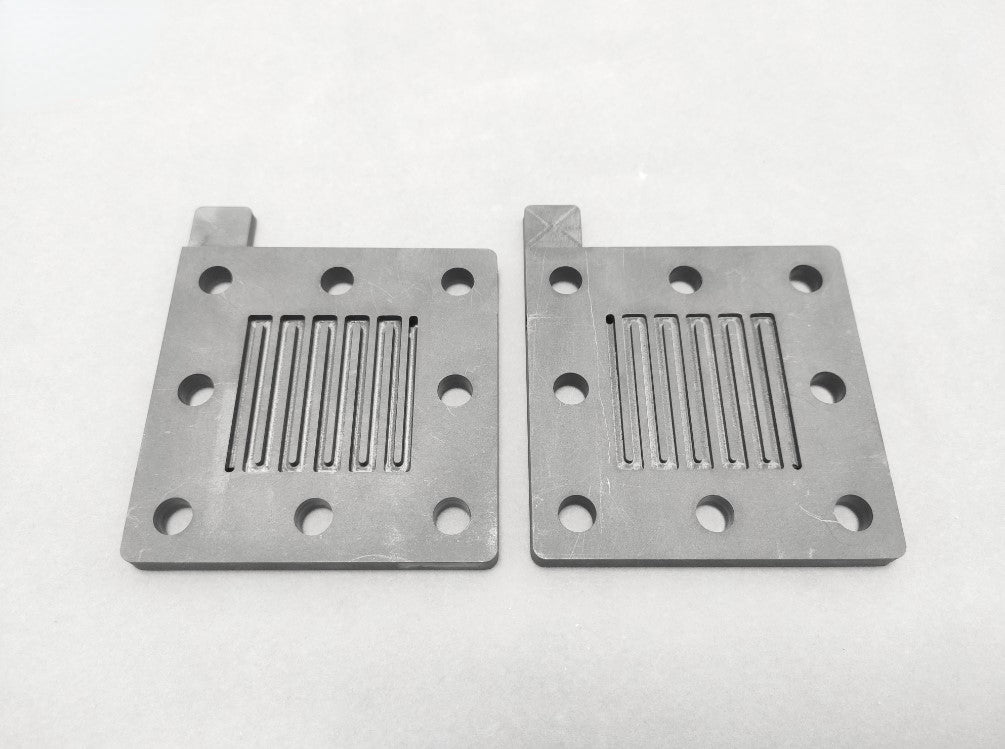

2. Graphite has good conductivity, and serpentine runner can effectively reduce the flow rate by electrode slurry, thus making it more fully contact with Ionic screen protector.

3. Salt water/raw water alone from interval board liquid, not with electrode slurry strings of liquid.

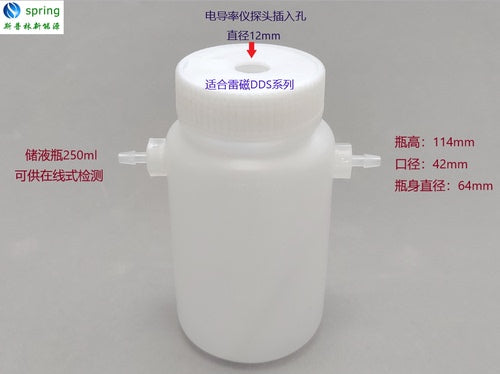

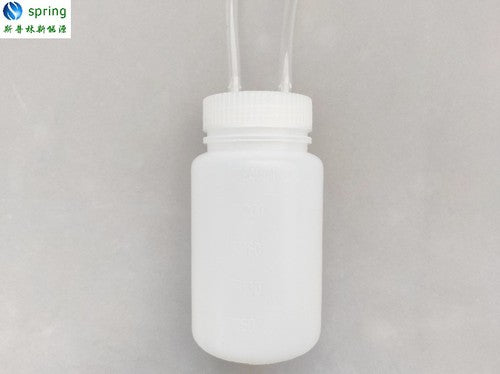

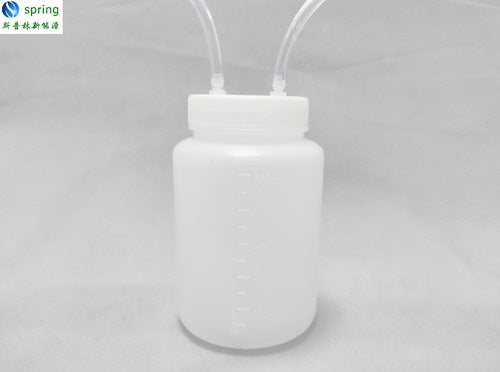

4. The price of the device does not include fluid reservoir and circulating pump. If you need it, please have a single row of accessories 1, 2, and 5.

5. Product parameters



   6. Precautions

       1）Do not place Plexiglass plate directly inAlcohol solution, or pour alcohol on the surface of plexiglass plate, otherwise, plexiglass plate of the surface will be cracked or even damaged. Plexiglass plate when there is oil stain on the surface, it is recommendedDip with tissueA small amount of alcoholClean the surface.

       2）Prohibit the use of plexiglass plateUltrasonic cleaning！

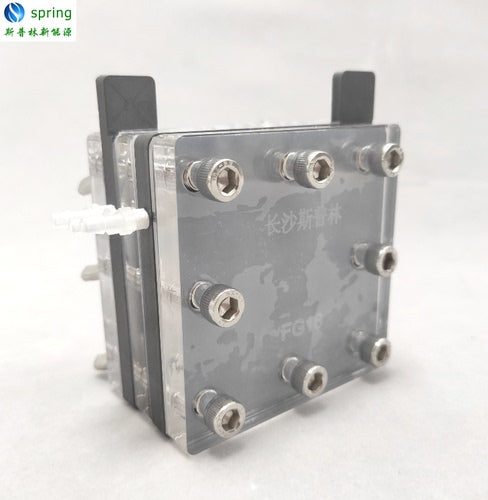

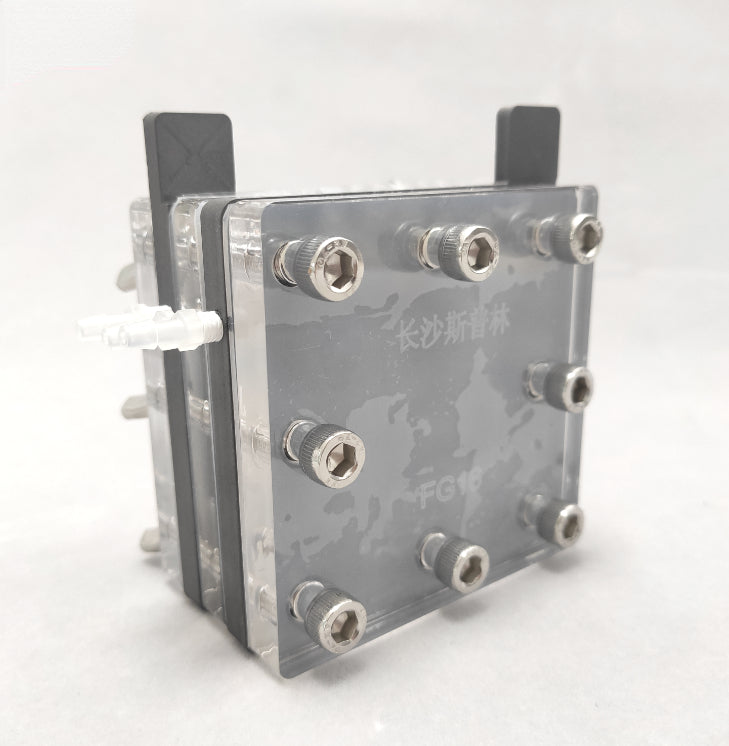

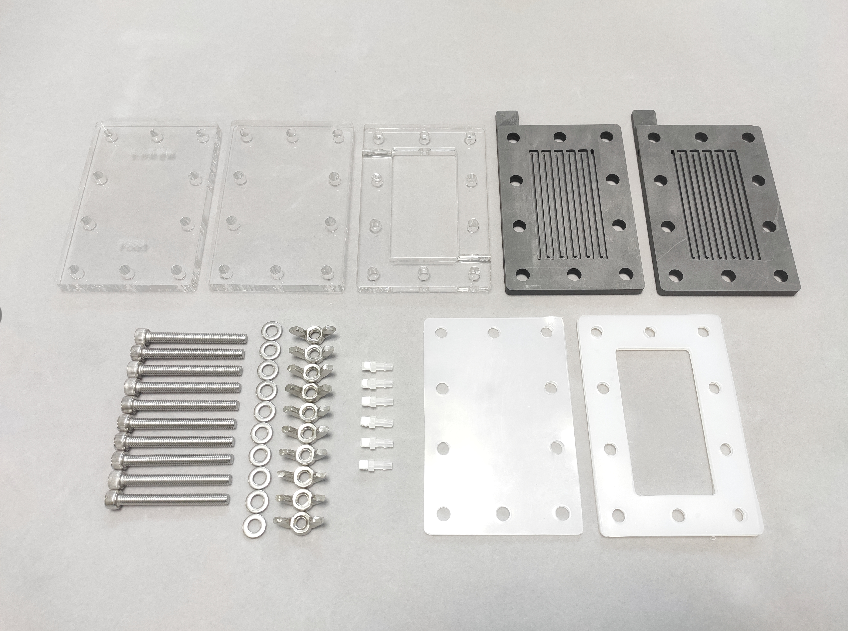

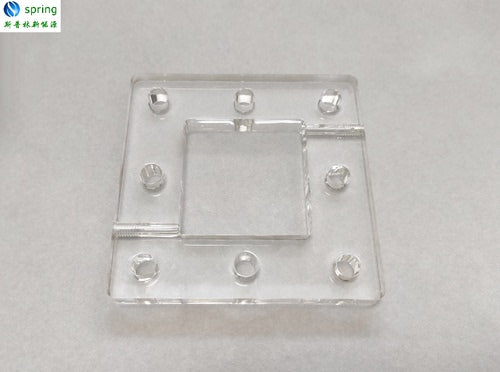

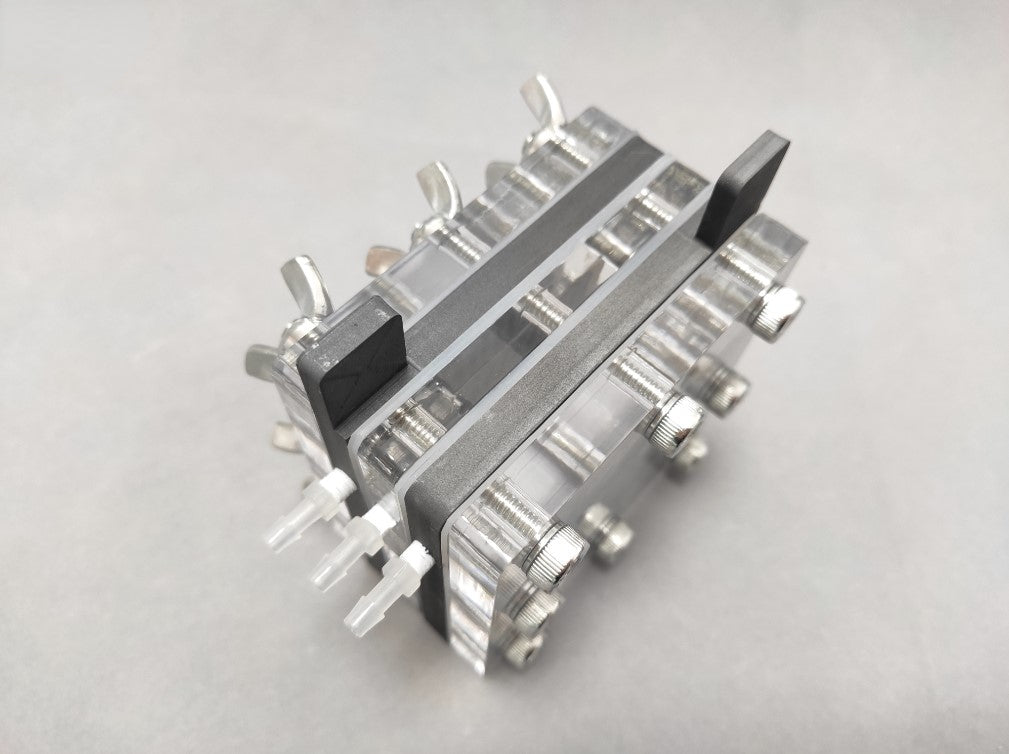

II. Product pictures

III. Accessories list



IV. Accessories and instructions

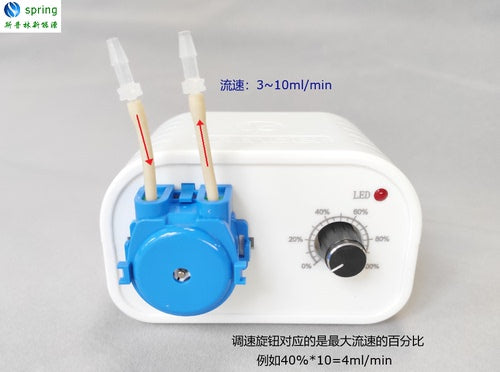

ACCESSORIES 1 circulating pump blue (3 ~ 10ml/min, manual adjustable flow rate)
