Zinc Air Test Device Manual Feeding Mold Metal Air Reactor Secondary Zinc Air Electrolytic Cell
Zinc Air Test Device Manual Feeding Mold Metal Air Reactor Secondary Zinc Air Electrolytic Cell
Couldn't load pickup availability
TransparentMold:Electrolyte non-circulation-OMS-T series
I. Product Introduction
1、Organic glass (PMMA) is used as the main material, which has corrosion resistance and high strength., easy to observe。
2、Simple assembly and easy to disassemble. Reaction Surface integral 1, 2, 3, 4 and 4.5 cm2, other requirements can be customized。
3. All screws are made of 304 stainless steel. Butterfly nut is more convenient to assemble.
4、Product Parameters
* T1 cathode reaction area 1cm2，ButAnode/zinc electrodeThe reaction area on one side is 4.5 cm2. If you need the corresponding negative and anode areas, please contact customer service before placing an order.
5. Precautions
1）It is forbidden to place Plexiglass plate directly in ethanol./Alcohol solution, or pour alcohol on the surface of plexiglass plate, otherwise, plexiglass plate of the surface will be cracked or even damaged. Plexiglass plate when there is oil stain on the surface, it is recommendedDip with tissueA small amount of alcoholClean the surface.
2）Prohibit the use of plexiglass plateUltrasonic cleaning！

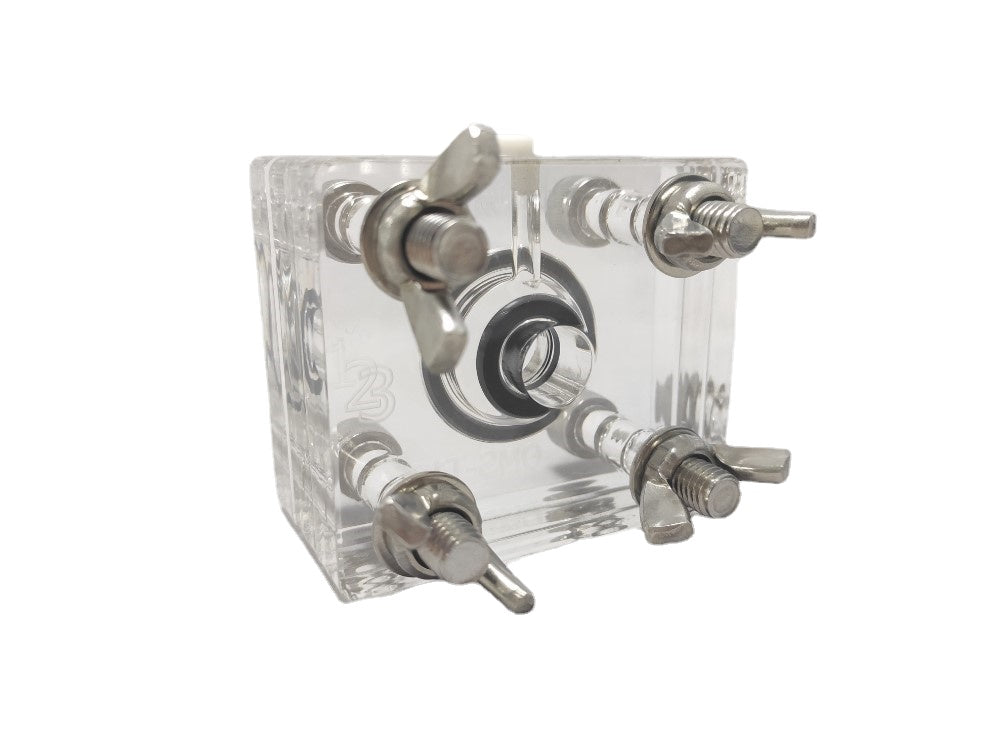

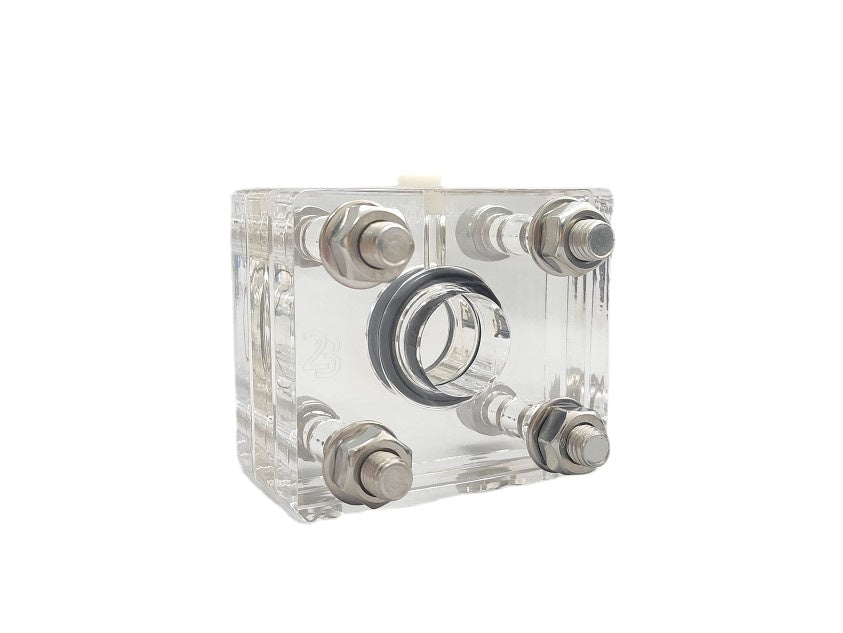

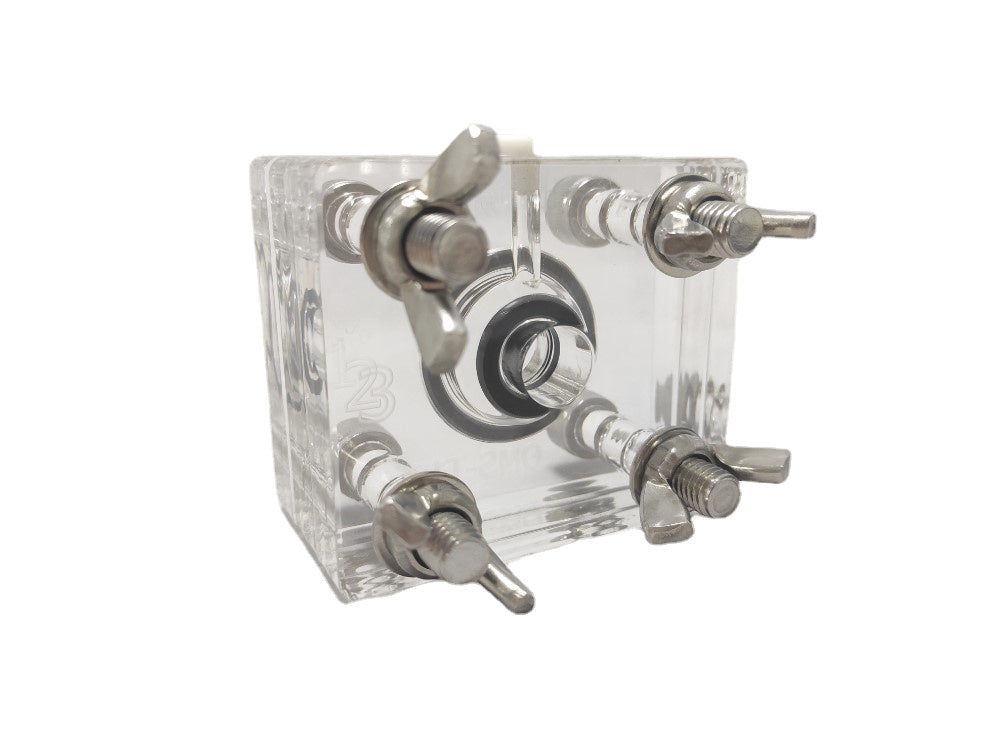

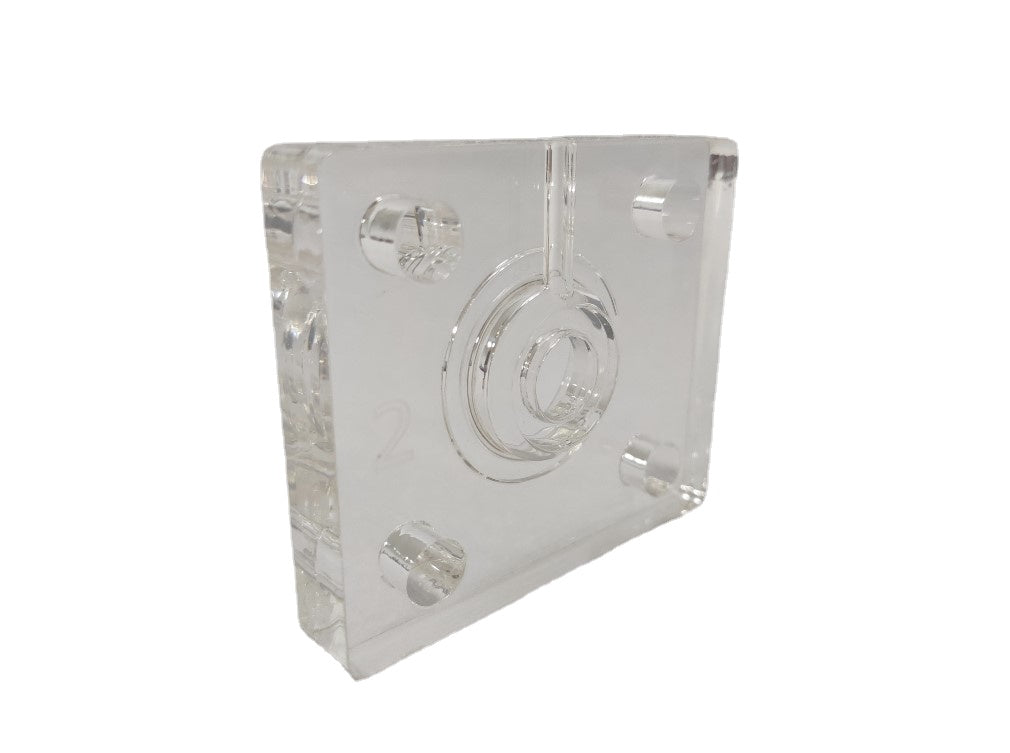

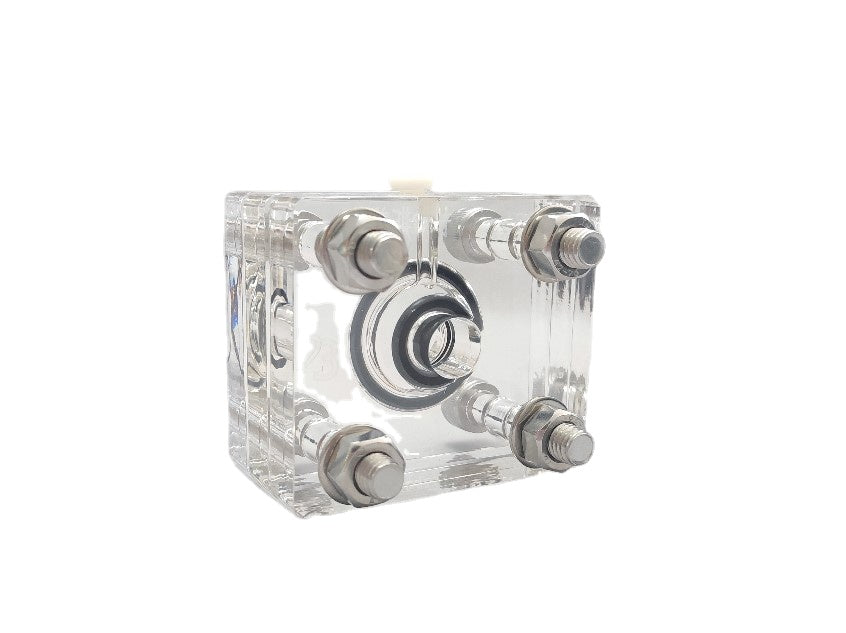

II. Product pictures
