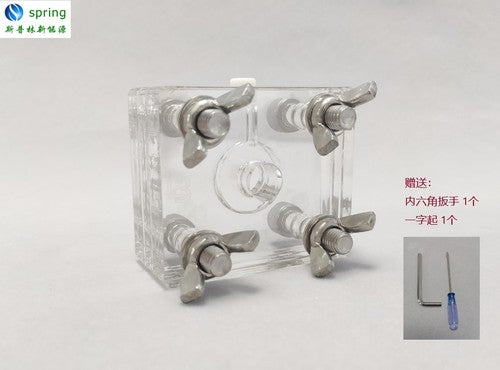

Zinc Air Test Device Metal Air Cell Mold Gasket Sealed Transparent Non-Circulating Electrolytic Cell

TransparentMold:Electrolyte non-circulation-OMS-G series

I. Product Introduction

1、Organic Glass (PMMA) is used as the main material, which is corrosion resistant, high strength and convenient to observe.

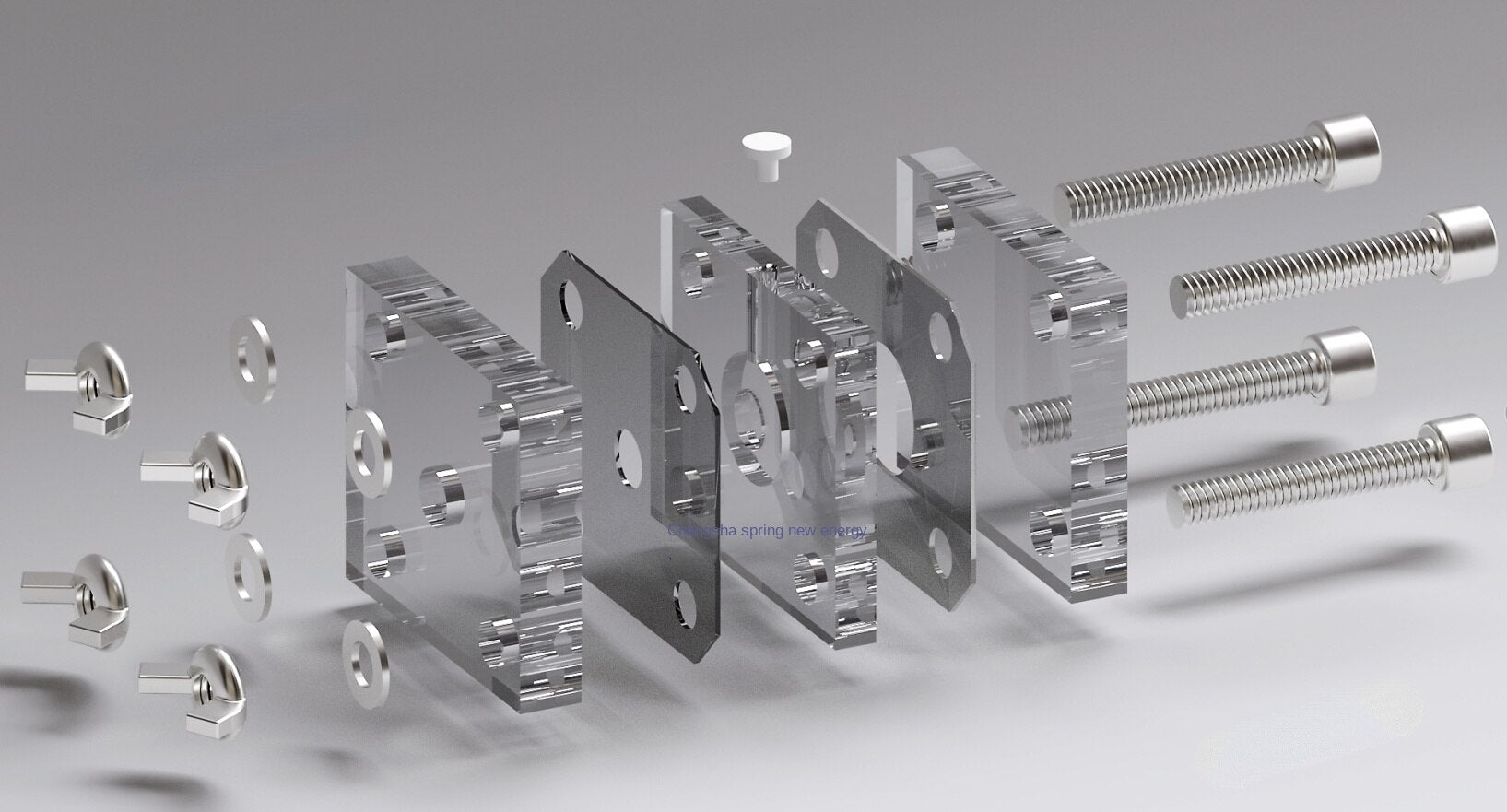

2. Simple assembly and easy disassembly. Reaction Surface integral 1, 2, 3, 4 and 4.5 cm2, other requirements can be customized.

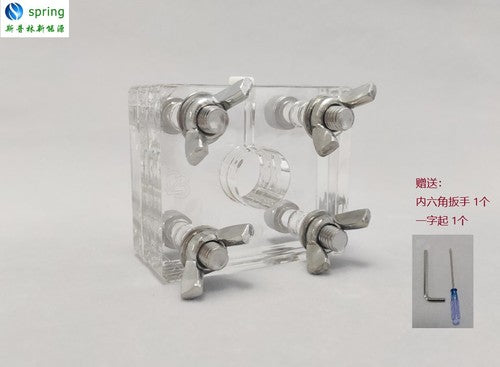

3. All screws are made of 304 stainless steel. Butterfly nut is more convenient to assemble.

4. The difference between OMS-G and OMS-T:

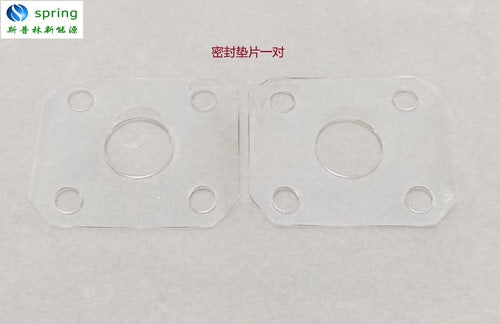

1)OMS-G useGasket seal, when the device is tightened, the pressure area of the positive electrode material is large, which can better protect the positive electrode material; There is no need to make O-ring plating tank on the liquid storage plate, so the liquid storage plate will be stronger and more durable, the liquid storage plate will not collapse and plating tank fall off.

    2) the pole spacing of the OMS-G device is about 10mm, which is 14mm higher than that of the OMS-T device.Smaller pole spacing, the ion transmission distance is closer, and the effect is better in high current and high power tests.

5. Product parameters

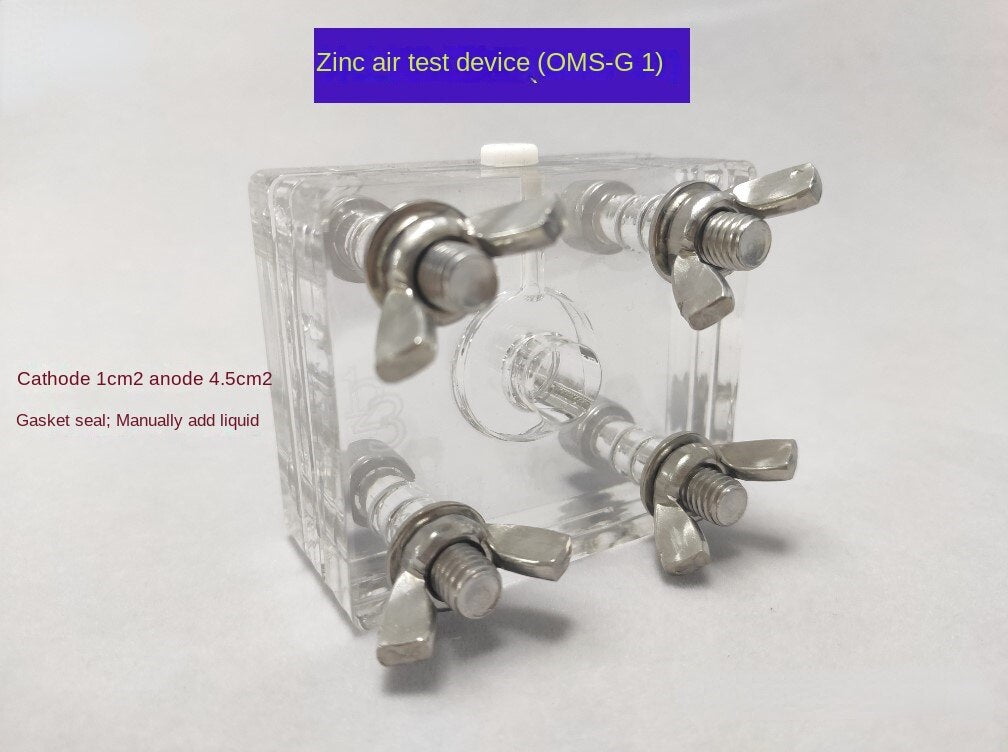

* G1 cathode reaction area 1cm²，ButAnode/zinc electrodeThe reaction area on one side is 4.5 cm2. If you need the corresponding negative and anode areas, please contact customer service before placing an order.

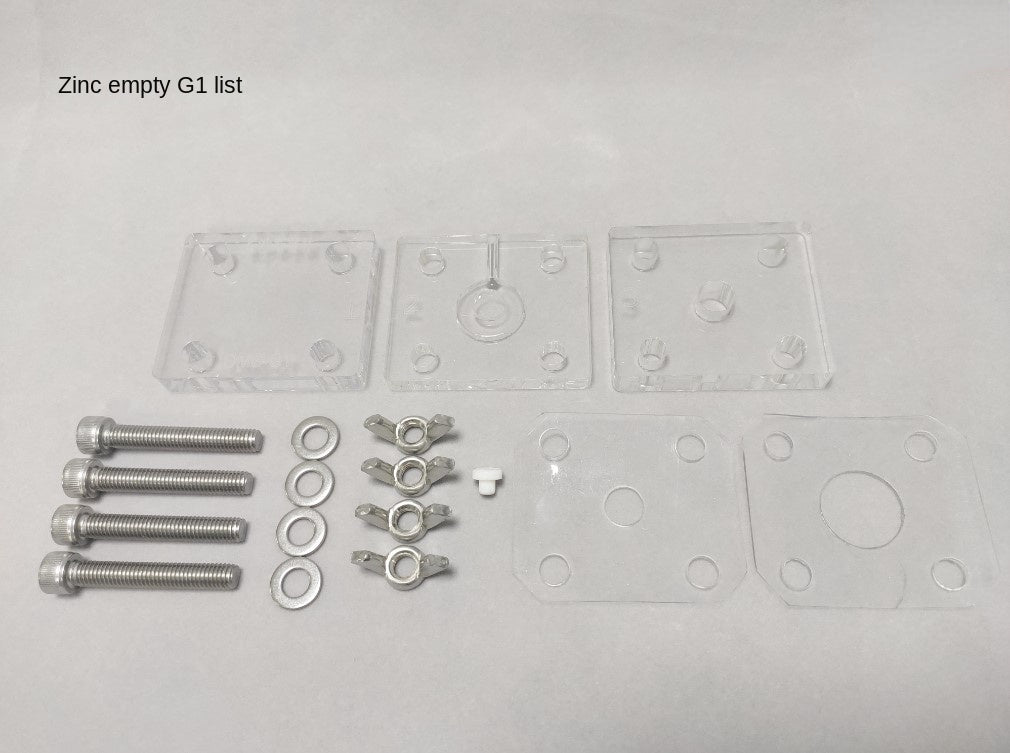

6. Product list

7. Precautions

    1）It is forbidden to place Plexiglass plate directly in ethanol./Alcohol solution, or pour alcohol on the surface of plexiglass plate, otherwise, plexiglass plate of the surface will be cracked or even damaged. Plexiglass plate when there is oil stain on the surface, it is recommendedDip with tissueA small amount of alcoholClean the surface.

    2）Prohibit the use of plexiglass plateUltrasonic cleaning！

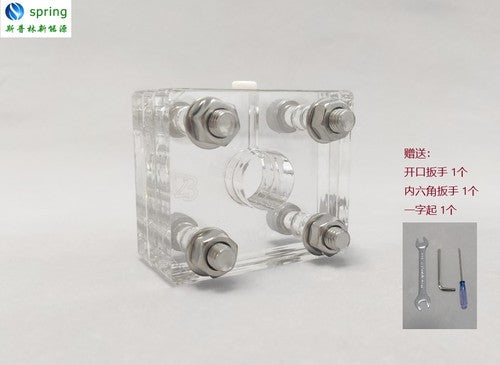

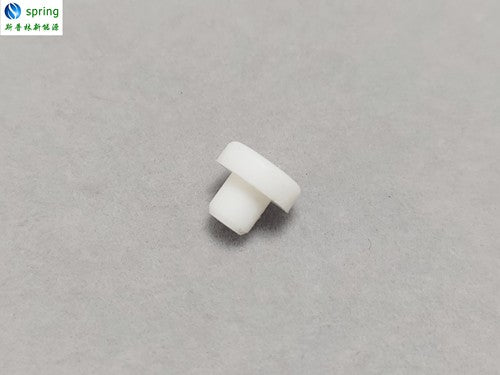

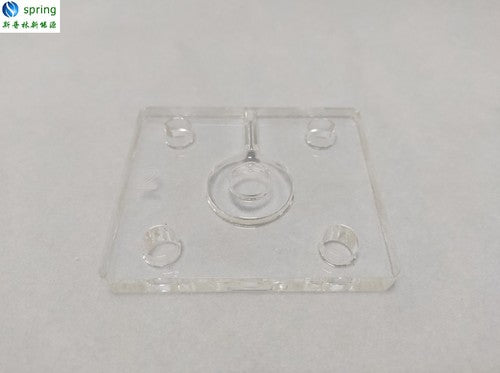

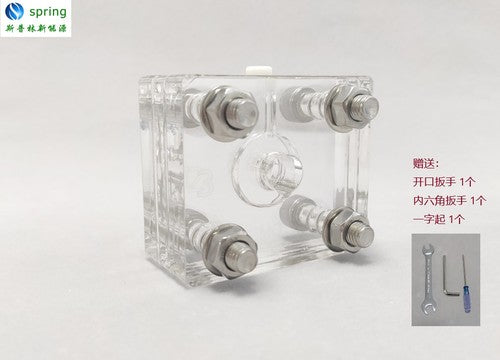

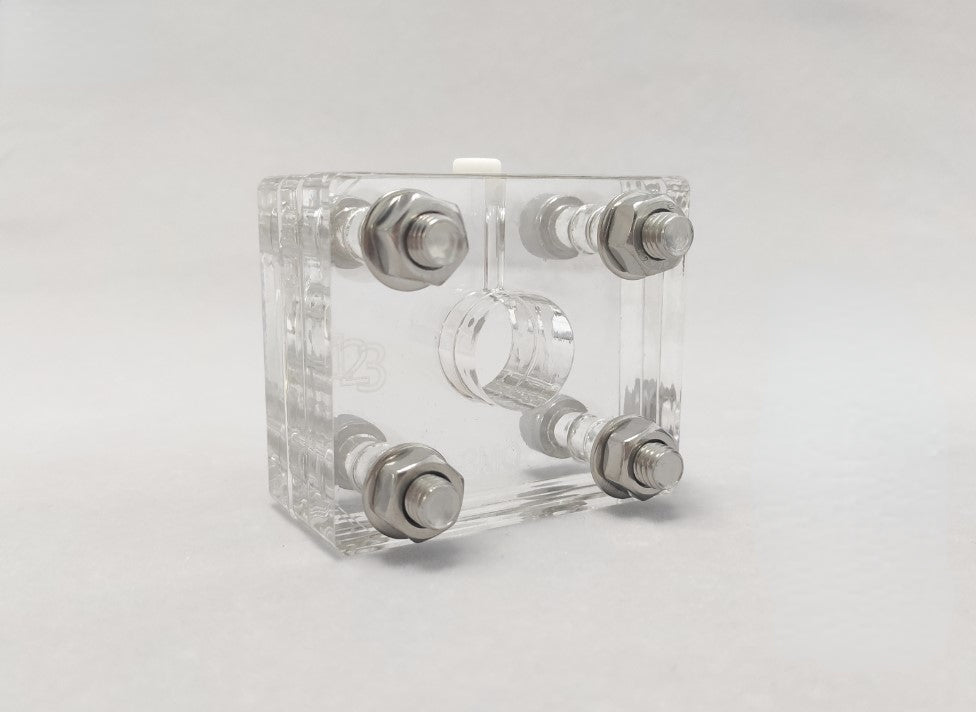

II. Product pictures
