Zinc Air Test Device/Metal Air Cell Mold/Gasket Sealed Transparent Recyclable Electrolytic Cell

Transparent锌空Mold: electrolyte circulation-GR series

I. Product Introduction

1、Transparent recyclable zinc air test mold (GR) is designed for gasket sealing and convenient pipeline connection.

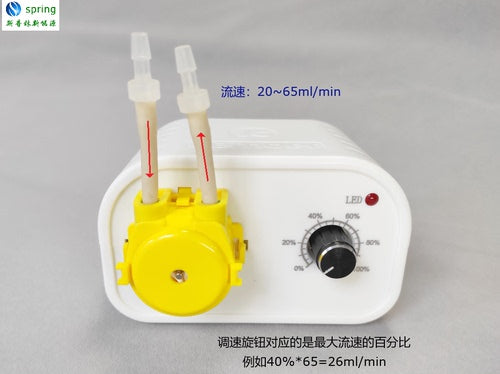

2、Circulating pump outside the bottle body, the electrolyte does not pass through the pump body, thus improving the service life of the circulating equipment.

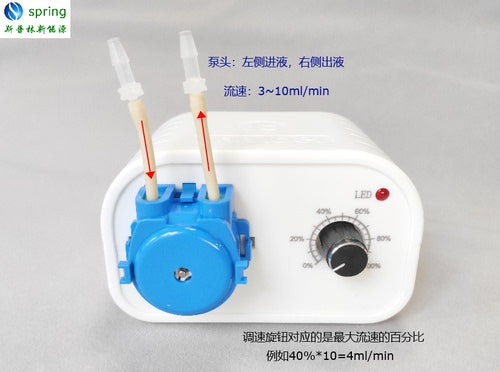

3. Through the external circulating pump knob, it is convenient to adjust the electrolyte flow rate. Electrolyte circulation can effectively reduce the passivation of negative electrode in the reaction and reduce polarization.

4. The difference between OMS-GR and OMS-TR:

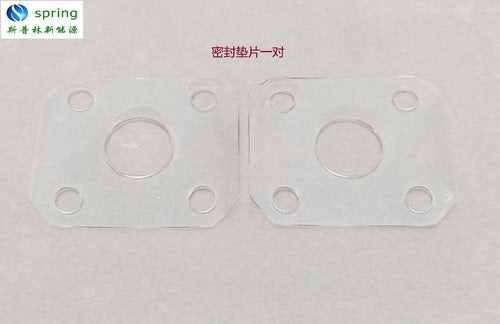

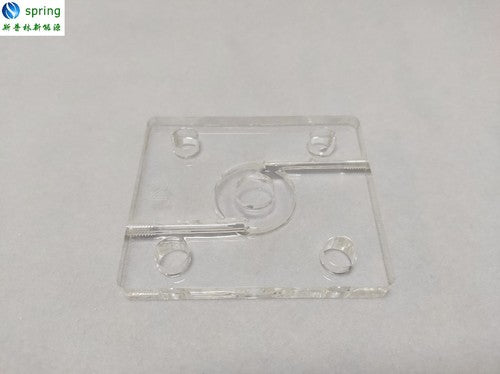

1)GR adoptionGasket seal, when the device is tightened, the pressure area of the positive electrode material is large, which can better protect the positive electrode material; There is no need to make O-ring plating tank on the liquid storage plate, so the liquid storage plate will be stronger and more durable, the liquid storage plate will not collapse and plating tank fall off.

2) the pole spacing of the OMS-GR device is about 10mm, which is 14mm higher than that of the OMS-TR device.Smaller pole spacing, the ion transmission distance is closer, and the effect is better in high current and high power tests.

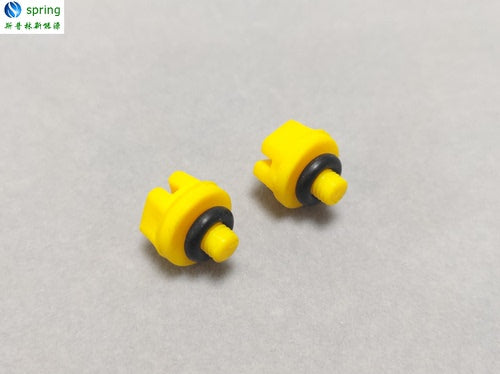

3) fluid reservoir connectorPlastic connector, to avoid the problem of rust after stainless steel joint.

5. Product parameters:

Project	Parameter					Remarks
Mold material	PMMA					透明
Width	7cm
Height	6cm
Positive and Negative pole distance	1cm

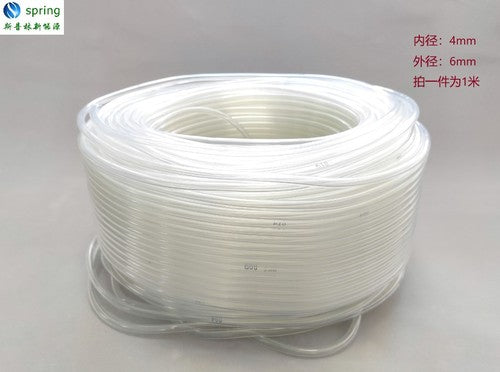

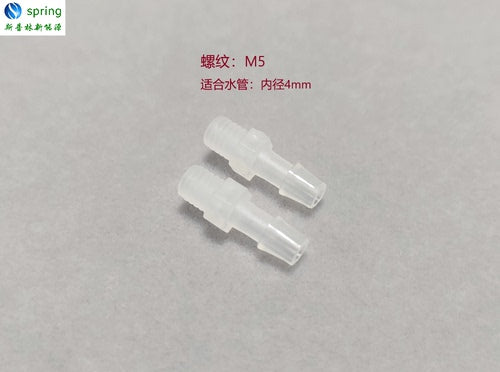

Gas pipe connector	Inner diameter4/6/8mm
Sealing performance	No leakage
Model	GR1	GR2	GR3	GR4	GR4.5
Reaction area(cm2)	1	2	3	4	4.5

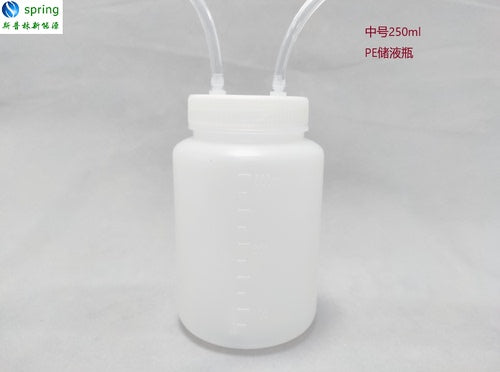

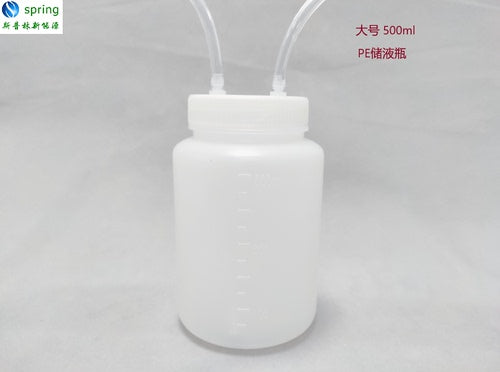

Charge liquid quantity	Fluid reservoir capacity 100/250/500ml					500ml is sent by default



* GR1 cathode reaction area 1cm²，ButAnode/zinc electrodeReaction area on one side 4.5cm². If you need the corresponding negative and anode areas, please contact customer service before placing an order.

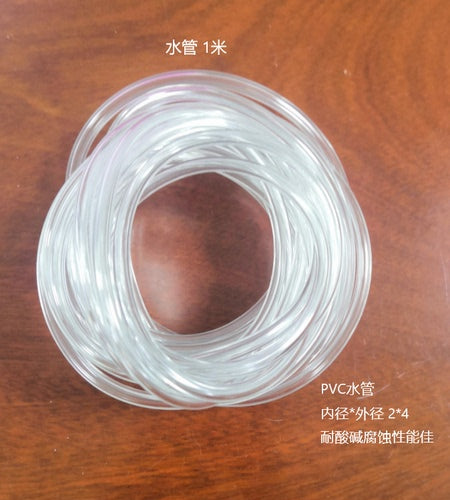

6. Product list

Please measure the size of oxygen hose on the oxygen cylinder before purchasing, and put the size of oxygen hoseInner and outer diameterInform customer service

By default, a regular 6mm blue quick plug is sent.

7、Note:

1）It is forbidden to place Plexiglass plate directly in ethanol./Alcohol solution, or pour alcohol on the surface of plexiglass plate, otherwise, plexiglass plate of the surface will be cracked or even damaged. Plexiglass plate when there is oil stain on the surface, it is recommendedDip with tissueTake a small amount of alcoholClean the surface.

2）ProhibitedUltrasonic waveCleaningPlexiglass plate。

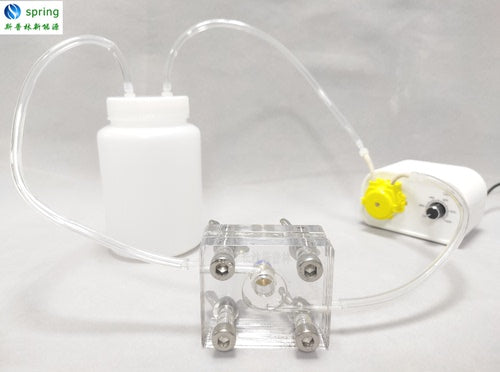

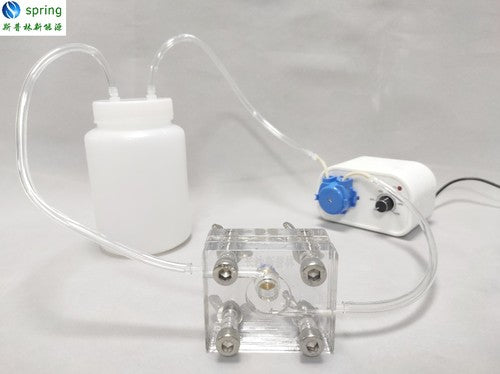

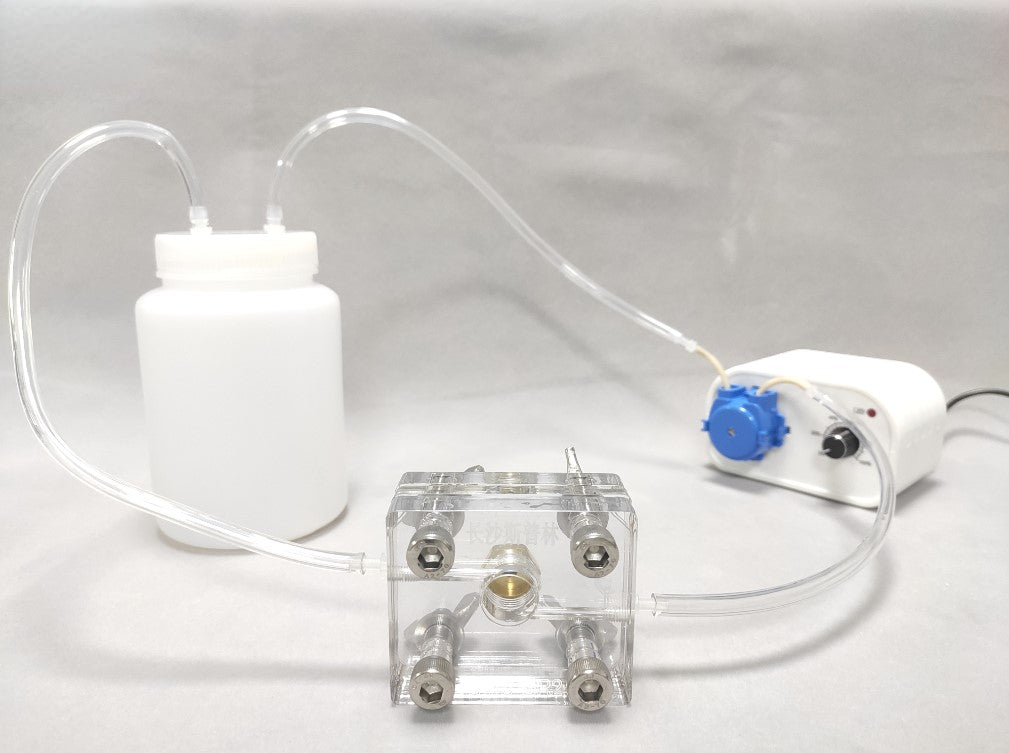

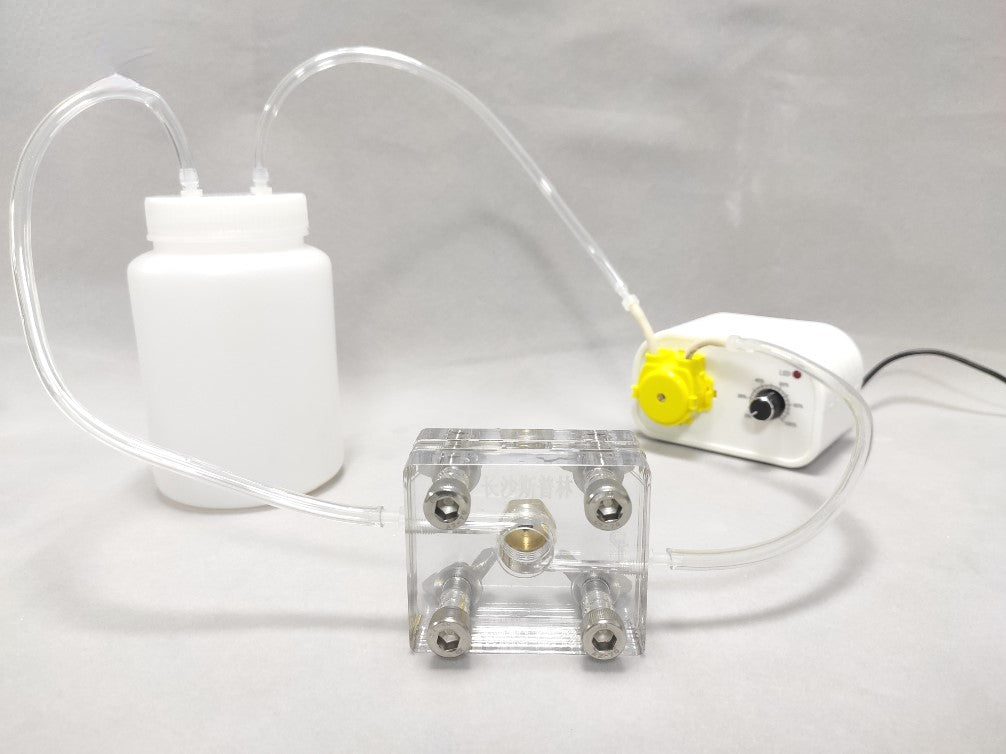

II. Product pictures
